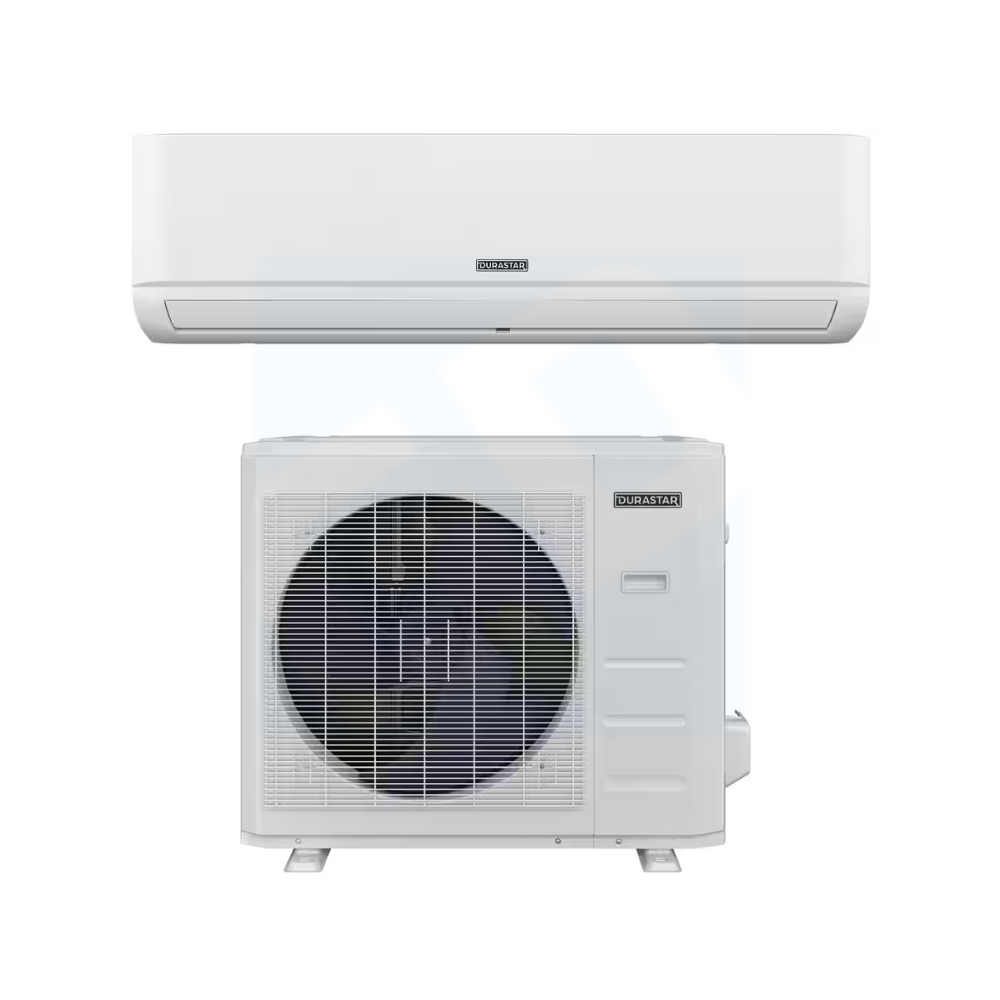

Durastar DRAW33F2A & DRA1H33S2A – 33,000 BTU wall mount mini-split offers ultra-quiet, high-efficiency heating/cooling with R-454B, inverter tech, base pan heater, and operation down to -22°F. Ideal for large spaces and cold climates.

Unit Type: Single Zone
Product Line: Durastar Mini-Splits
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 33,000 BTU
Line Set Size: 3/8" x 3/4"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit DRAW33F2A
Outdoor Unit DRA1H33S2A
Remote Control Included

Cooling Capacity up to 35,900 BTU
Heating Capacity up to 38,200 BTU
SEER2 20.0
EER2 11.7
HSPF2 10.5
Heating Operating Temp -22 - 75 F
Cooling Operating Temp -22 - 122 F
Room Cooling/Heating Capacity up to 1,400 sq ft

PRODUCT FEATURES
• Up to 100% heating capacity at 0oF
• Low ambient heating down to -22oF
• Low ambient cooling down to -22oF
• A2L refrigerant detection system
• Variable speed inverter compressor
• Quiet operation
• Wireless remote control with "Follow Me" technology
• Turbo, ECO, Active Clean, Sleep modes and more
• Auto restart
• 46oF freeze protection
• Included base pan heater
• Anti-corrosive fin coating
• Compatible with DRSTAT101 wired thermostat

Airflow CFM: 447-530-677-830
Noise Level dB(A): 23-30-47-53-56
Size W x D x H: 49-9/16" x 11-1/8" x 14-1/4"
Weight: 43.2 lbs

Noise Level: 64 dB(A)
Size W x D x H: 37-1/4" x 16-1/8" x 31-7/8"
Weight: 157.0 lbs
Electrical: 208/230V, 35 A
Max Line Set Length: 164 ft
Max Height Difference: 82 ft
