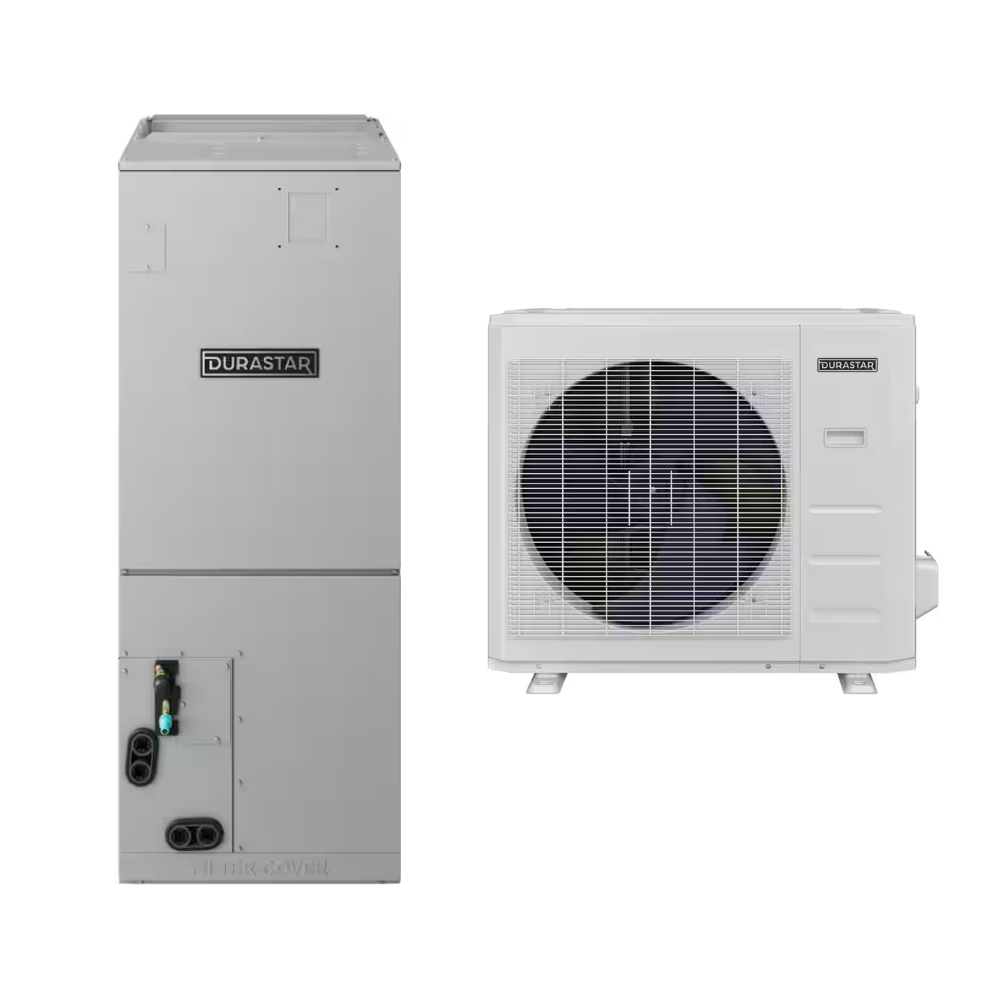

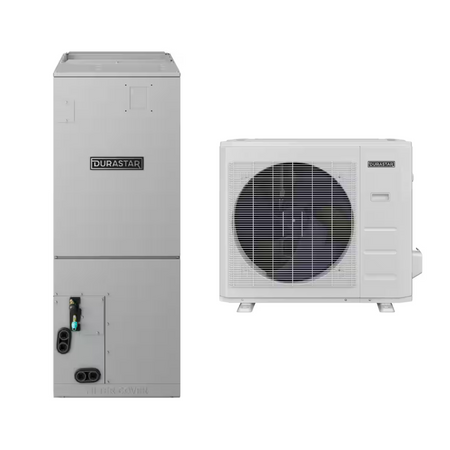

Durastar DRAM24F2A & DRA1H24S2A delivers 24,000 BTU of whole-home comfort with Sirius Heat™ performance down to –22°F, inverter tech, multi-position airflow, and ENERGY STAR® efficiency. Ideal for large zones and cold-climate ducted installs.

Unit Type: Single Zone
Product Line: Durastar Mini-Splits
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: Multi
System Capacity: 24,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit DRAM24F2A
Outdoor Unit DRA1H24S2A
Wired Remote Included

Cooling Capacity up to 27,000 BTU
Heating Capacity up to 29,000 BTU
SEER2 18.7
EER2 12.0
HSPF2 10.0
Heating Operating Temp -22 - 75 F
Cooling Operating Temp -22 - 122 F
Room Cooling/Heating Capacity up to 1,000 sq ft

PRODUCT FEATURES
• Up to 100% heating capacity at 0ºF
• Low ambient heating and cooling down to -22 oF
• High-efficiency constant volume variable speed motor
• Multi-position installation: horizontal (right or left),
vertical (up or down)
• All aluminum coil
• Anti-corrosive coil fin coating
• Included base pan heater
• A2L refrigerant detection system
• DRSTAT101 programmable thermostat included
• Automatic airflow configuration technology
• Multiple operation modes (Cool, Heat, Aux, Dry, Fan,
Auto)
• Built-in humidifier, IAQ and condensate switch ports
• 24V thermostat compatible
• Optional electric heat (not included)

Airflow CFM: 630-695-759-824
Noise Level dB(A): 26-40-44
Size W x D x H: 21" x 17-1/2" x 45"
Weight: 104.3 lbs

Noise Level: 62 dB(A)
Size W x D x H: 37-1/4" x 16-1/8" x 31-7/8"
Weight: 130.3 lbs
Electrical: 208/230V, 25 A
Max Line Set Length: 164 ft
Max Height Difference: 82 ft
