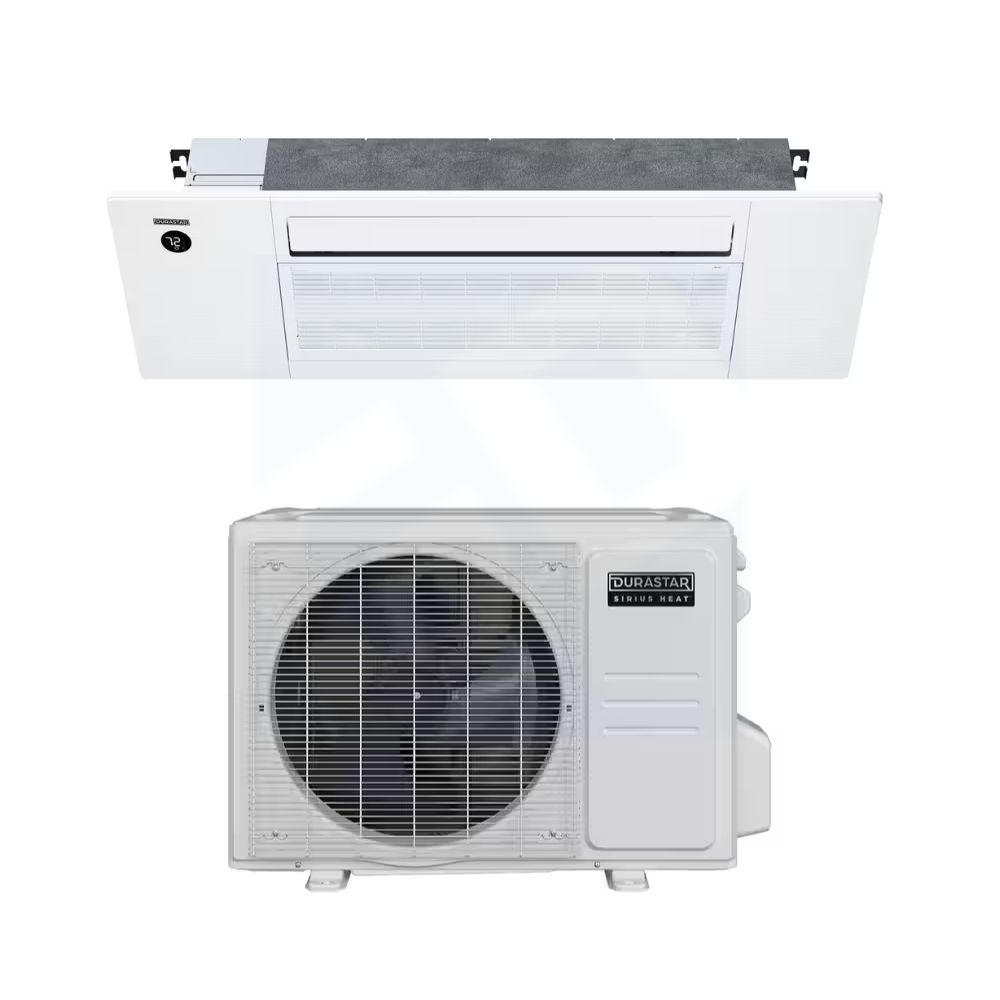

Durastar DRAL0612F2A & DRA1H09S2A – 9,000 BTU ceiling cassette mini-split delivers quiet, efficient heating/cooling with 100% capacity at 0°F and operation down to -22°F. Features inverter tech, remote with Follow Me, and built-in base pan heater for cold-climate reliability.

Unit Type: Single Zone
Product Line: Durastar Mini-Splits
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 9,000 BTU
Line Set Size: 1/4" x 3/8"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit DRAL0612F2A
Outdoor Unit DRA1H09S2A
Remote Control Included

Cooling Capacity up to 12,900 BTU
Heating Capacity up to 13,900 BTU
SEER2 24.0
EER2 14.6
HSPF2 12.1
Heating Operating Temp -22 - 75 F
Cooling Operating Temp -22 - 122 F
Room Cooling/Heating Capacity up to 350 sq ft

PRODUCT FEATURES
• Up to 100% heating capacity at 0oF
• Low ambient heating and cooling down to -22oF
• A2L refrigerant detection system
• Variable speed inverter compressor
• Quiet operation
• Wireless remote control with "Follow Me" technology
• Turbo, ECO, Active Clean, Sleep modes and more
• Humidity control
• Auto restart
• 46oF freeze protection
• Included base pan heater
• Anti-corrosive fin coating
• Compatible with DRSTAT101 wired thermostat
• Grille included

Airflow CFM: 177-247-283-312-353
Noise Level dB(A): 24-33-36-38
Size W x D x H: 50-5/16" x 13-3/16" x 9"
Weight: 45.2 lbs

Noise Level: 55 dB(A)
Size W x D x H: 31-11/16" x 13" x 21-13/16"
Weight: 72.2 lbs
Electrical: 208/230V, 15 A
Max Line Set Length: 82 ft
Max Height Difference: 49 ft
