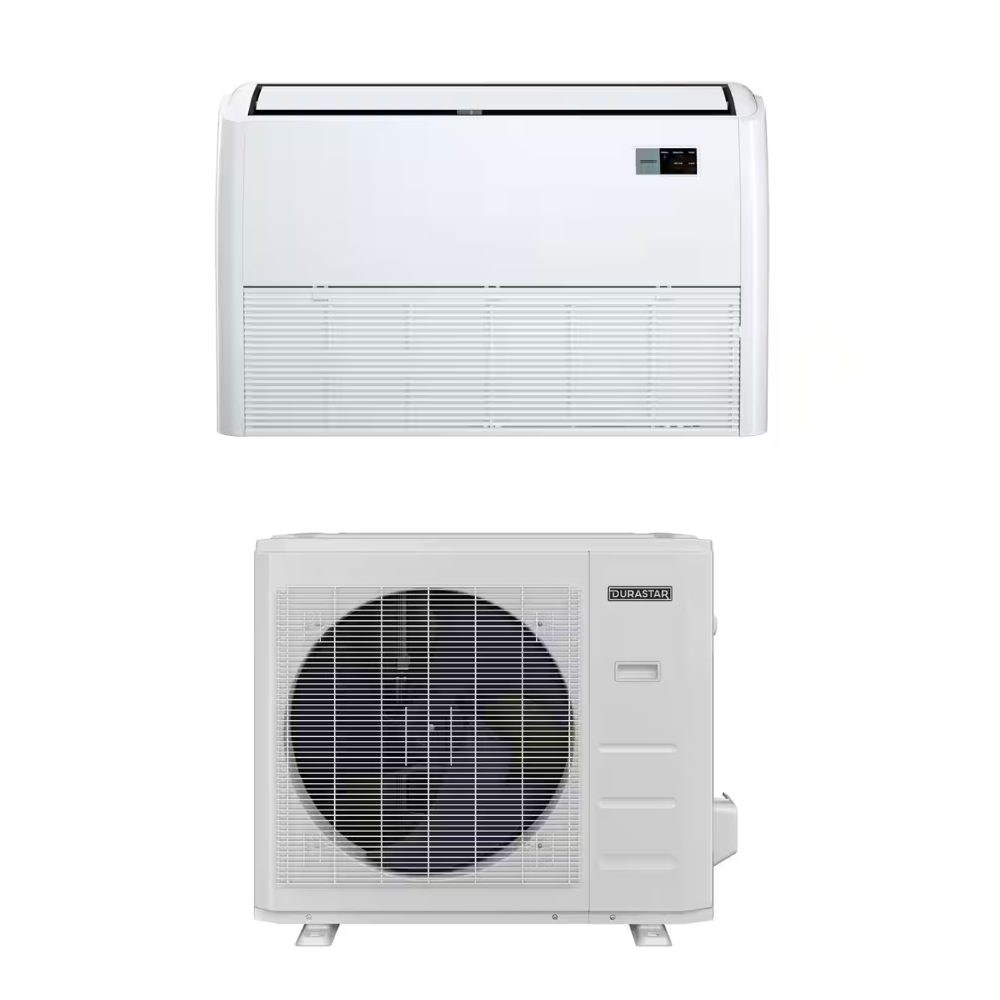

The Durastar DRAF24F2A & DRA1U24S2A delivers 24,000 BTU of efficient, quiet comfort in a floor/ceiling-mounted design. Ideal for large rooms, it features R‑454B refrigerant, smart modes, and heating down to –13 °F.

Unit Type: Single Zone
Product Line: Durastar Mini-Splits
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 24,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit DRAF24F2A
Outdoor Unit DRA1U24S2A
Remote Control Included

Cooling Capacity up to 29,000 BTU
Heating Capacity up to 32,600 BTU
SEER2 21.1
EER2 12.2
HSPF2 11.1
Heating Operating Temp -22 - 75 F
Cooling Operating Temp -22 - 122 F
Room Cooling/Heating Capacity up to 1,000 sq ft

PRODUCT FEATURES
• Low ambient heating and cooling down to -13oF
• A2L refrigerant detection system
• Variable speed inverter compressor
• Quiet operation
• Wireless remote control with "Follow Me" technology
• Flexible installation for floor or ceiling
• Turbo, ECO, Active Clean, Sleep modes and more
• Humidity control
• Auto restart
• 46oF freeze protection
• Included base pan heater
• Anti-corrosive fin coating
• Compatible with DRSTAT101 wired thermostat

Airflow CFM: 377-453-606-706-736
Noise Level dB(A): 29-34-45-49-51
Size W x D x H: 42-1/16" x 26-9/16" x 9-1/4"
Weight: 61.3 lbs

Noise Level: 57 dB(A)
Size W x D x H: 35-1/16" x 13-7/16" x 26-1/2"
Weight: 92.6 lbs
Electrical: 208/230V, 25 A
Max Line Set Length: 164 ft
Max Height Difference: 82 ft
