The Durastar DRAF24F2A & DRA1H24S2A Sirius Heat™ system delivers 24,000 BTU of efficient heating and cooling with flexible floor or ceiling installation. Operates down to –22 °F, ideal for large cold-climate rooms.

Unit Type: Single Zone
Product Line: Durastar Mini-Splits
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 24,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit DRAF24F2A

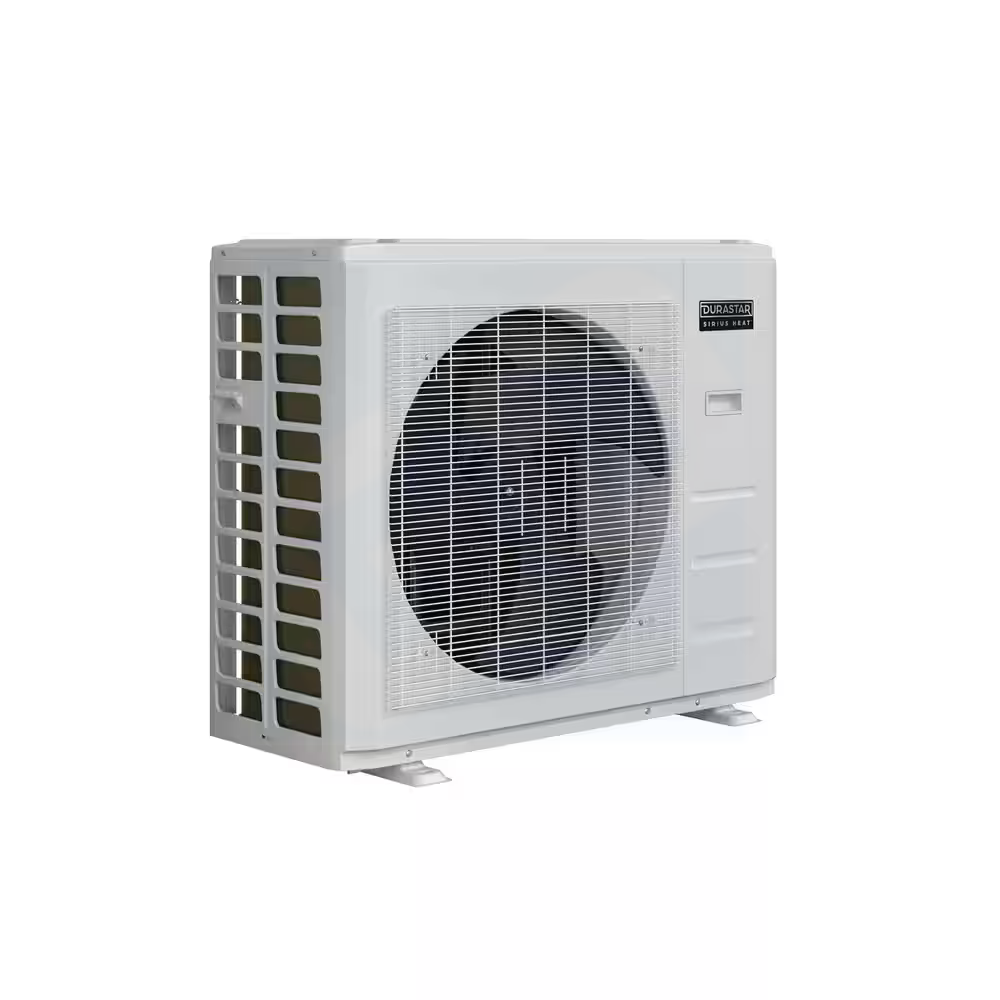

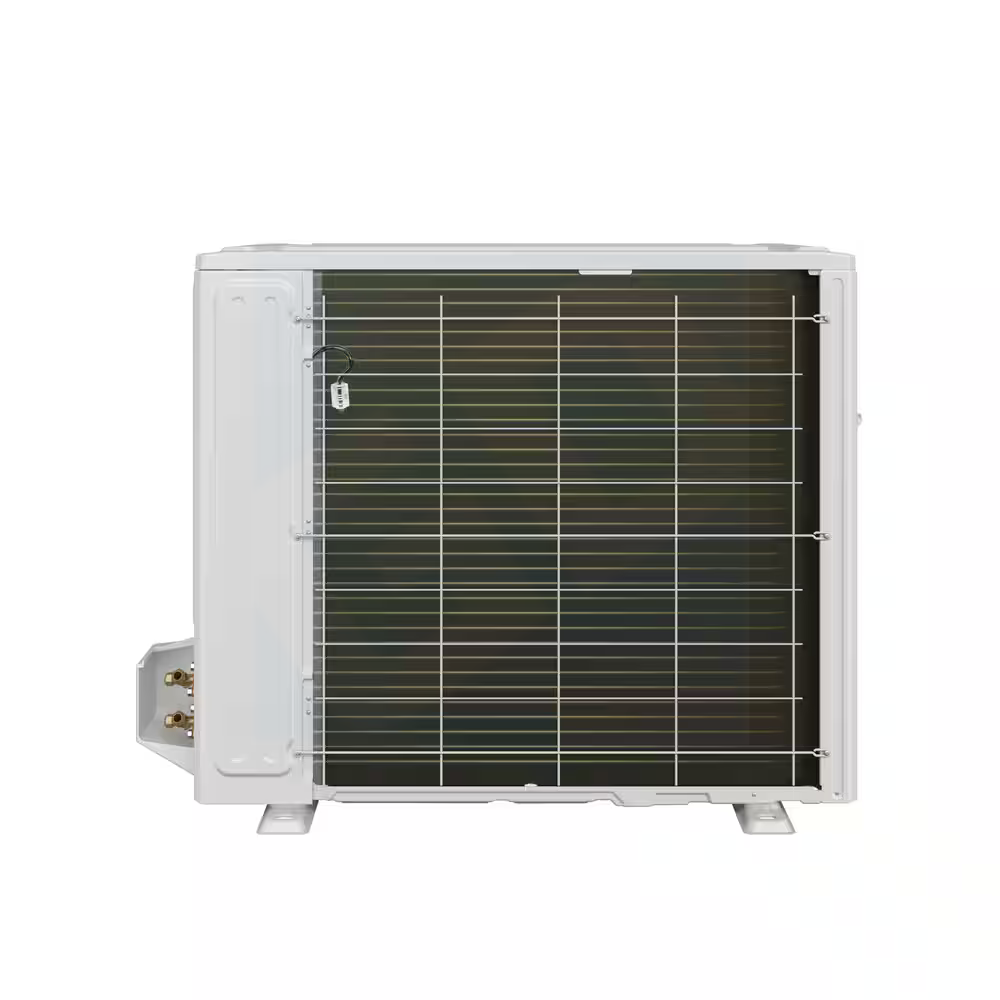

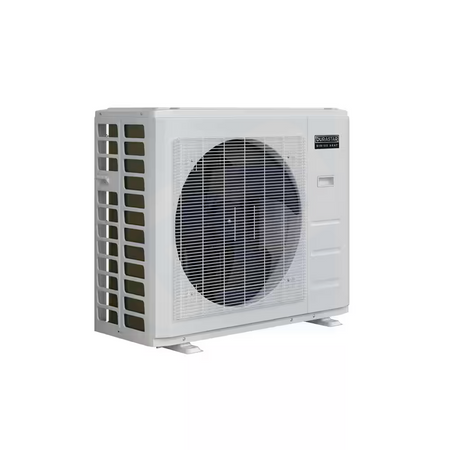

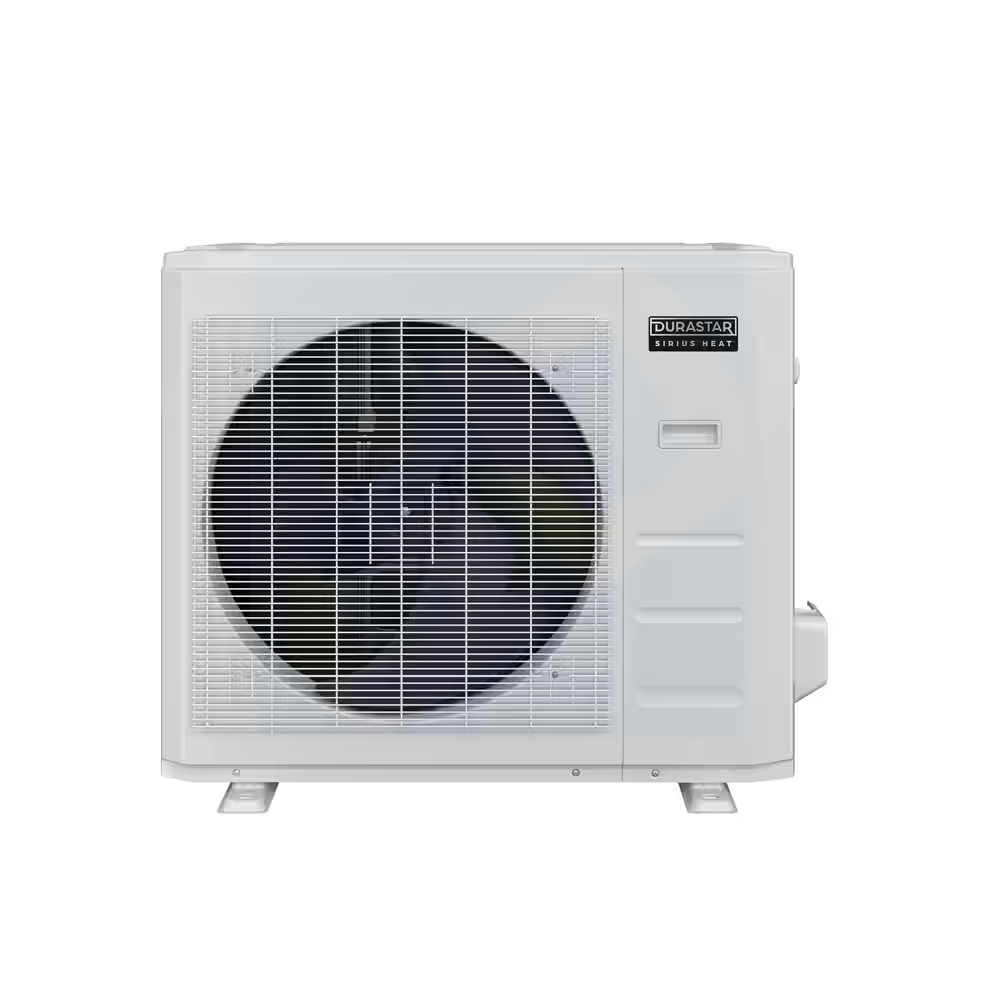

Outdoor Unit DRA1H24S2A
Remote Control Included

Cooling Capacity up to 25,600 BTU
Heating Capacity up to 25,600 BTU
SEER2 20.4
EER2 12.0
HSPF2 12.1
Heating Operating Temp -22 - 75 F
Cooling Operating Temp -22 - 122 F
Room Cooling/Heating Capacity up to 1,000 sq ft

PRODUCT FEATURES
• Up to 100% heating capacity at 0ºF
• Low ambient heating and cooling down to -22oF
• A2L refrigerant detection system
• Variable speed inverter compressor
• Quiet operation
• Wireless remote control with "Follow Me" technology
• Flexible installation for floor or ceiling
• Turbo, ECO, Active Clean, Sleep modes and more
• Humidity control
• Auto restart
• 46oF freeze protection
• Included base pan heater
• Anti-corrosive fin coating
• Compatible with DRSTAT101 wired thermostat

Airflow CFM: 377-453-606-706-736
Noise Level dB(A): 29-34-45-49-52
Size W x D x H: 42-1/16" x 26-9/16" x 9-1/4"
Weight: 61.3 lbs

Noise Level: 62 dB(A)
Size W x D x H: 37-1/4" x 16-1/8" x 31-7/8"
Weight: 130.3 lbs
Electrical: 208/230V, 25 A
Max Line Set Length: 164 ft
Max Height Difference: 82 ft
