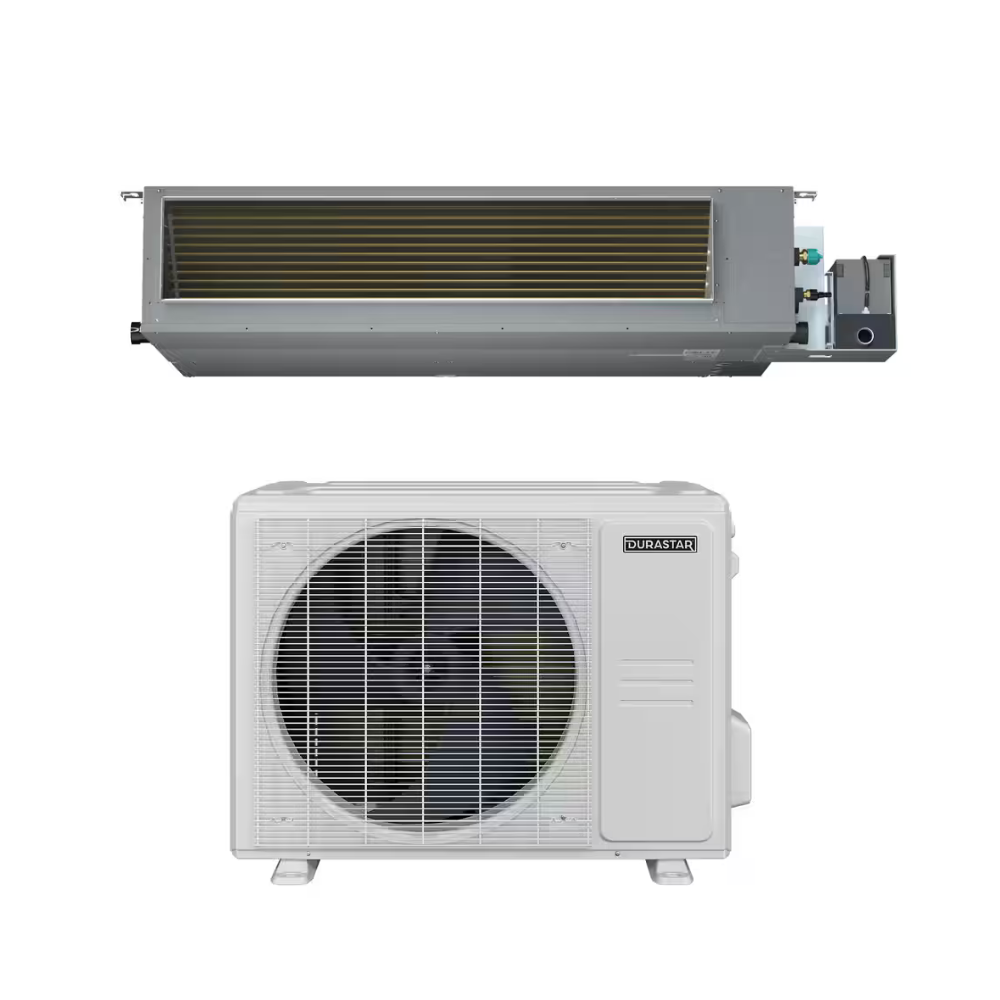

Durastar DRADL18F2A & DRA1H18S2A – 18,000 BTU low static ducted mini-split delivers quiet, efficient comfort with inverter tech, R-454B refrigerant, and heating down to –22°F. Ideal for hidden installs.

Unit Type: Single Zone
Product Line: Durastar Mini-Splits
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 18,000 BTU
Line Set Size: 1/4" x 1/2"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit DRADL18F2A
Outdoor Unit DRA1H18S2A
Wired Thermostat Included

Cooling Capacity up to 18,800 BTU
Heating Capacity up to 22,000 BTU
SEER2 18.0
EER2 12.0
HSPF2 10.5
Heating Operating Temp -22 - 75 F
Cooling Operating Temp -22 - 122 F
Room Cooling/Heating Capacity up to 750 sq ft

PRODUCT FEATURES
• Up to 100% heating capacity at 0ºC
• Low ambient cooling and heating down to -22oF
• Variable Speed Inverter Compressor
• A2L refrigerant detection system
• Horizontal and vertical installation
• External drain pump included (in horizontal installation only)
• Static pressure up to 0.4 in. WC
• DRSTAT101 programmable wired thermostat included
• Turbo, ECO, Sleep modes and more
• Quiet operation
• Included base pan heater
• Anti-corrosive fin coating

Airflow CFM: 441-500-560-600
Noise Level dB(A): 32-38-39-40
Size W x D x H: 34-11/16" x 26-9/16" x 8-5/16"
Weight: 54.5 lbs

Noise Level: 59 dB(A)
Size W x D x H: 35-1/16" x 13-7/16" x 26-1/2"
Weight: 99.9 lbs
Electrical: 208/230V, 20 A
Max Line Set Length: 98 ft
Max Height Difference: 66 ft
