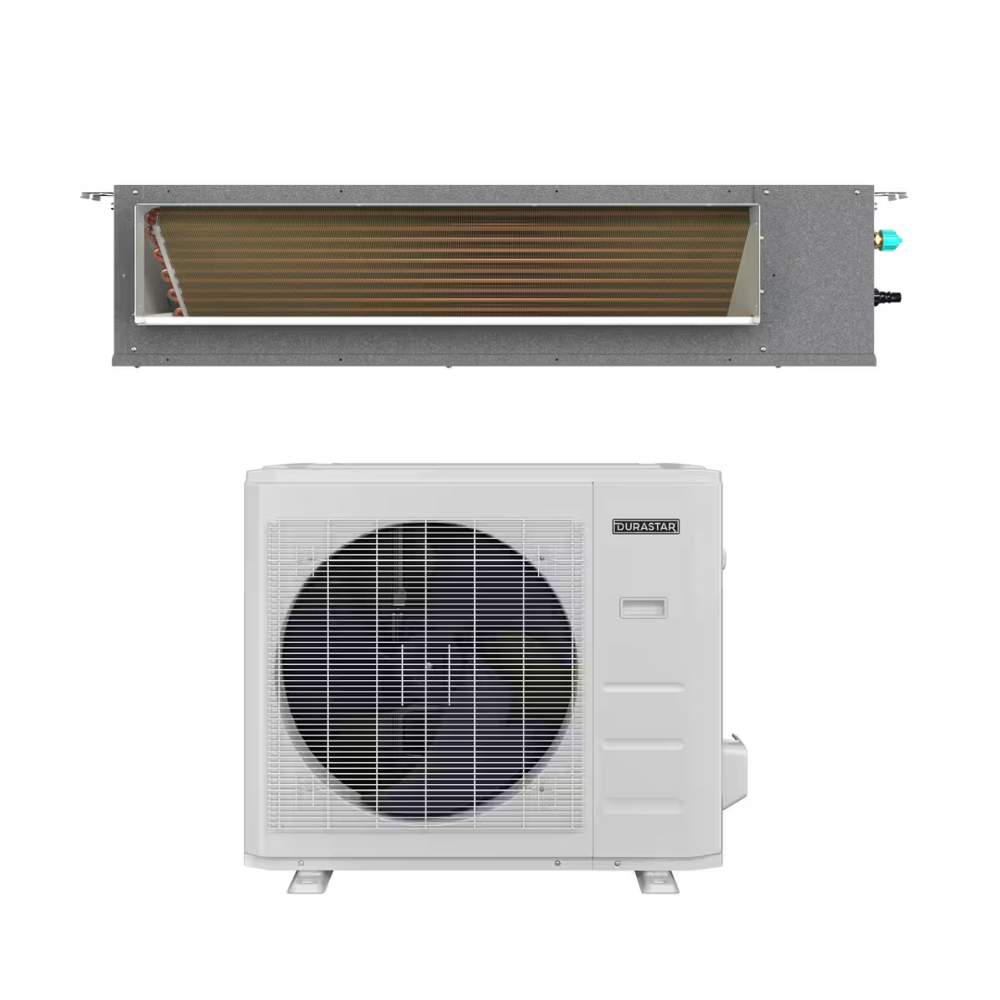

Durastar DRADH24F2A & DRA1U24S2A delivers 24,000 BTU of high static ducted comfort with inverter tech, R‑454B refrigerant, and reliable heating/cooling down to –13°F. Ideal for large, multi-zone spaces. ENERGY STAR® certified with quiet performance and smart control.

Unit Type: Single Zone
Product Line: Durastar Mini-Splits
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 24,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit DRADH24F2A
Outdoor Unit DRA1U24S2A
Wired Thermostat Included

Cooling Capacity up to 28,300 BTU
Heating Capacity up to 35,100 BTU
SEER2 19.0
EER2 12.5
HSPF2 11.0
Heating Operating Temp -22 - 75 F
Cooling Operating Temp -22 - 122 F
Room Cooling/Heating Capacity up to 1,000 sq ft

PRODUCT FEATURES
• Variable Speed Inverter Compressor
• A2L refrigerant detection system
• Internal drain pump included
• Horizontal and vertical installation
• High static pressure up to 0.8 in. WC
• DRSTAT101 programmable wired thermostat included
• Turbo, ECO, Sleep modes and more
• Quiet operation
• Low ambient heating down to -13 oF
• Low ambient cooling down to -13 oF
• Included base pan heater
• Anti-corrosive fin coating

Airflow CFM: 500-618-706-854
Noise Level dB(A): 30-36-38-40-43
Size W x D x H: 39-3/8" x 29-1/2" x 9-5/8"
Weight: 80.5 lbs

Noise Level: 60 dB(A)
Size W x D x H: 37-1/4" x 16-1/8" x 31-7/8"
Weight: 122.1 lbs
Electrical: 208/230V, 25 A
Max Line Set Length: 164 ft
Max Height Difference: 82 ft
