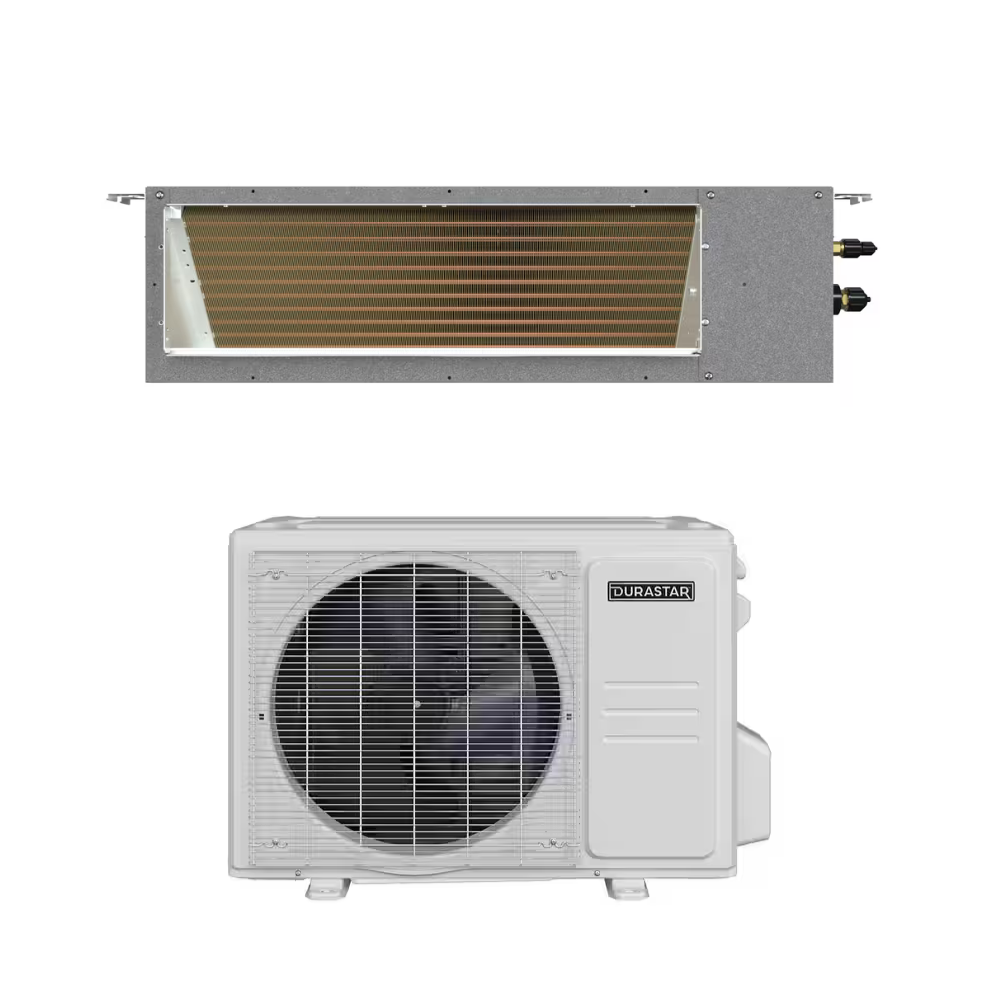

Durastar DRADH0912F2A & DRA1H12S2A – 12,000 BTU high static ducted mini-split delivers quiet, efficient comfort with R-454B refrigerant, inverter tech, and –22°F cold-climate performance. Ideal for multi-room ducted installs.

Unit Type: Single Zone
Product Line: Durastar Mini-Splits
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 12,000 BTU
Line Set Size: 1/4" x 3/8"
WiFi Enabled: Yes
WiFi Built In: No

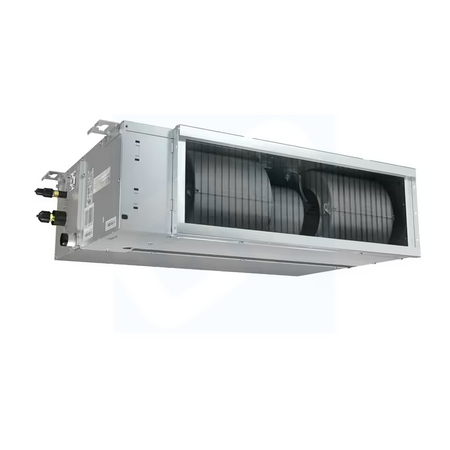

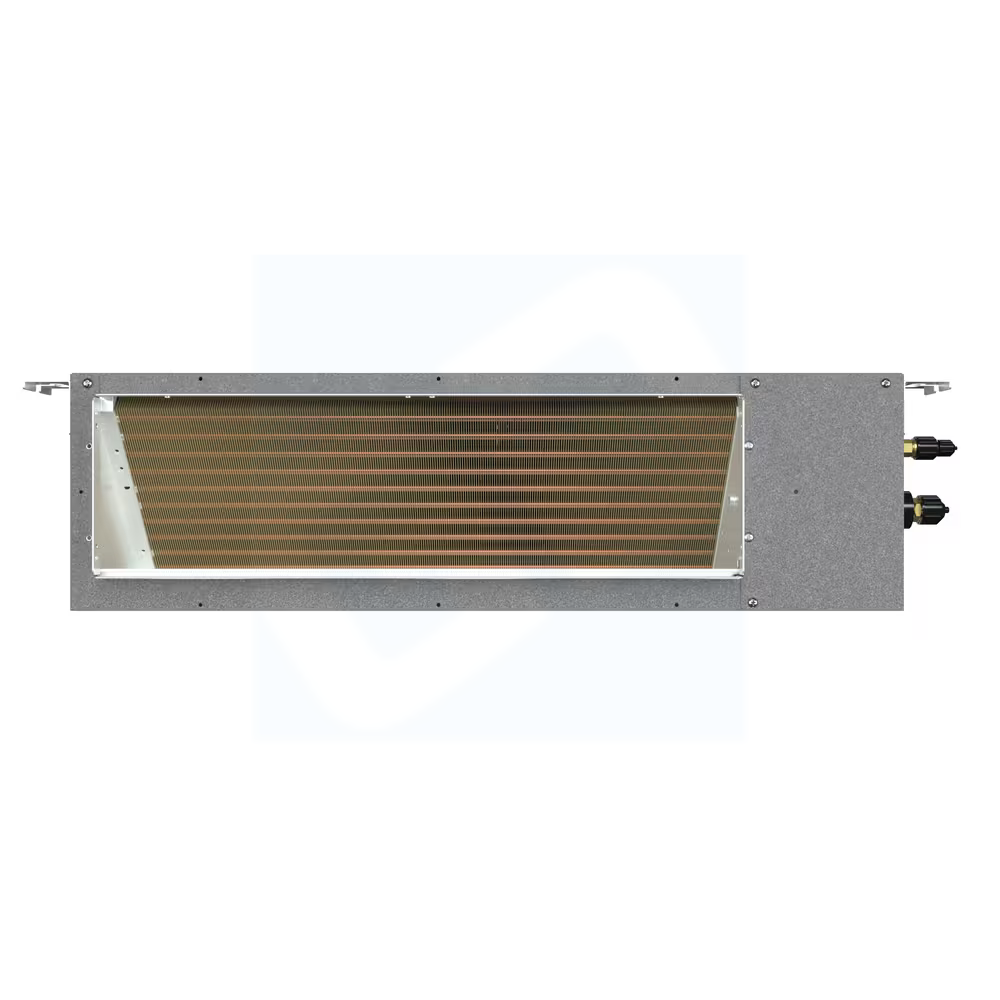

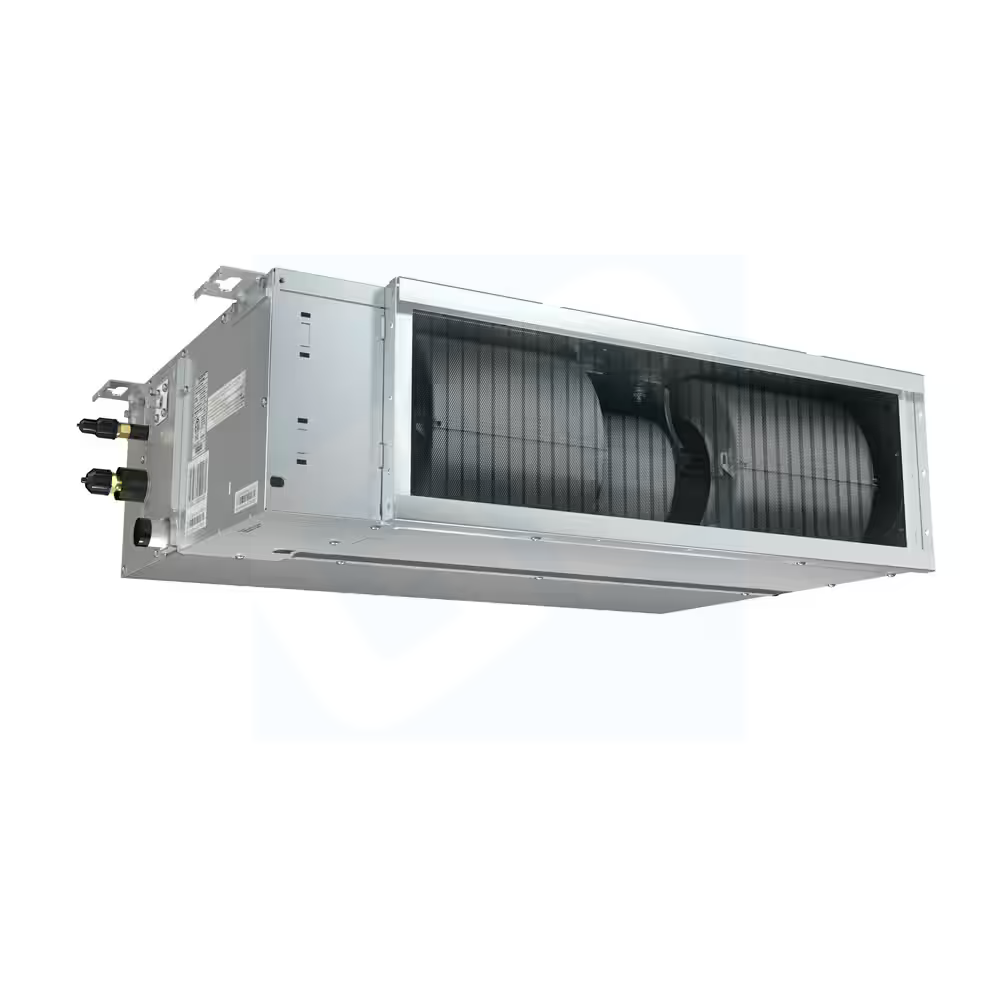

Indoor Unit DRADH0912F2A
Outdoor Unit DRA1H12S2A
Wired Thermostat Included

Cooling Capacity up to 13,300 BTU
Heating Capacity up to 16,500 BTU
SEER2 20.5
EER2 12.0
HSPF2 10.6
Heating Operating Temp -22 - 75 F
Cooling Operating Temp -22 - 122 F
Room Cooling/Heating Capacity up to 500 sq ft

PRODUCT FEATURES
• Up to 100% heating capacity at 0ºC
• Low ambient cooling and heating down to -22oF
• Variable Speed Inverter Compressor
• A2L refrigerant detection system
• Internal drain pump included
• Horizontal and vertical installation
• High static pressure up to 0.8 in. WC
• DRSTAT101 programmable wired thermostat included
• Turbo, ECO, Sleep modes and more
• Quiet operation
• Included base pan heater
• Anti-corrosive fin coating

Airflow CFM: 135-216-256-350-419
Noise Level dB(A): 26-28-29-30
Size W x D x H: 27-9/16" x 29-1/2" x 9-5/8"
Weight: 64.2 lbs

Noise Level: 54 dB(A)
Size W x D x H: 31-11/16" x 13" x 21-13/16"
Weight: 72.8 lbs
Electrical: 208/230V, 15 A
Max Line Set Length: 82 ft
Max Height Difference: 49 ft
