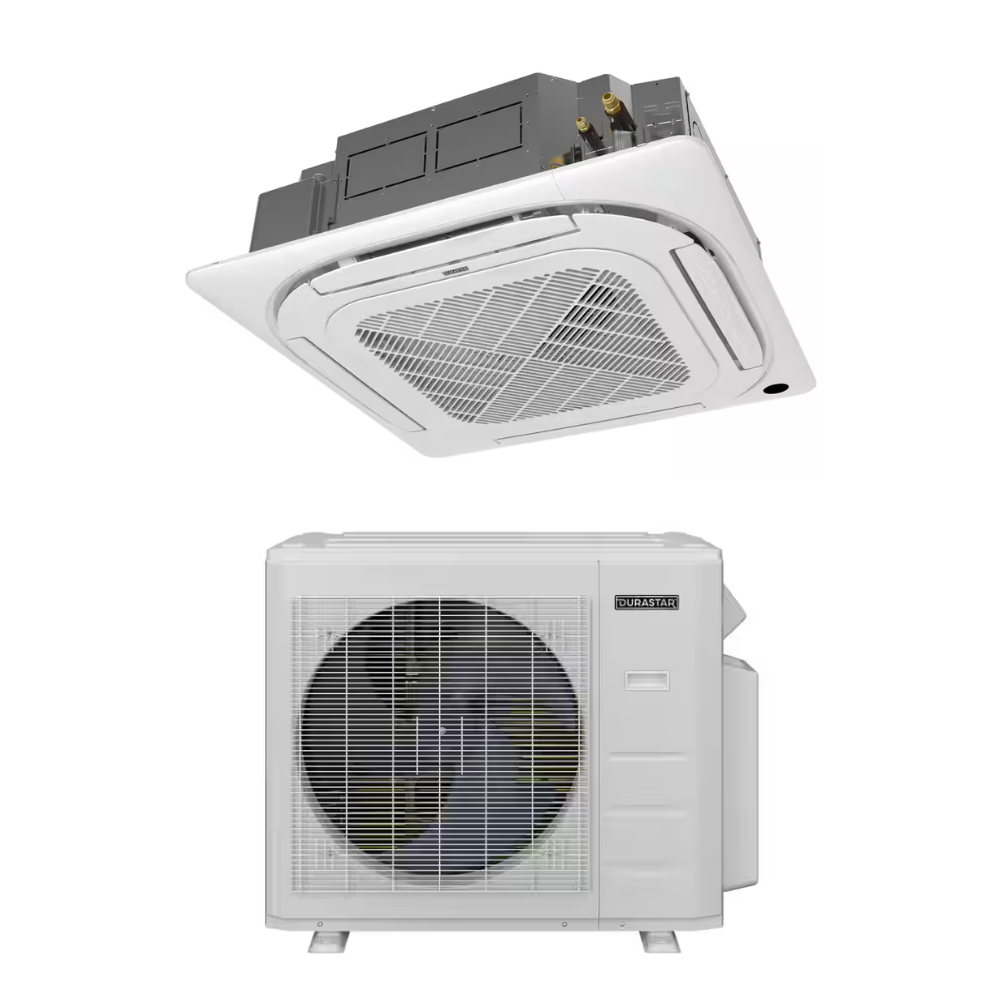

Durastar DRAC24F2A & DRA1U24S2A is a 24,000 BTU ceiling cassette mini-split system with R‑454B refrigerant, inverter tech, and low-ambient heating to –13°F. ENERGY STAR® certified, it offers quiet, efficient comfort for large rooms. Includes DRACPANB1B grille.

Unit Type: Single Zone
Product Line: Durastar Mini-Splits
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 24,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit DRAC24F2A
Outdoor Unit DRA1U24S2A
Ceiling Cassette Grille DRACPANB1B
Remote Control Included

Cooling Capacity up to 26,800 BTU
Heating Capacity up to 33,100 BTU
SEER2 22.0
EER2 12.0
HSPF2 10.5
Heating Operating Temp -22 - 75 F
Cooling Operating Temp -22 - 122 F
Room Cooling/Heating Capacity up to 1,000 sq ft

PRODUCT FEATURES
• Low ambient heating down to -13oF
• Low ambient cooling down to -13oF
• A2L refrigerant detection system
• Variable speed inverter compressor
• Quiet operation
• Wireless remote control with "Follow Me" technology
• Turbo, ECO, Active Clean, Sleep modes and more
• Humidity control
• Auto restart
• 46oF freeze protection
• Included base pan heater
• Anti-corrosive fin coating
• Compatible with DRSTAT101 wired thermostat

Airflow CFM: 547-636-706-765
Noise Level dB(A): 31-34-43-46
Size W x D x H: 32-11/16" x 32-11/16" x 8-1/16"
Weight: 47.2 lbs

Noise Level: 60 dB(A)
Size W x D x H: 37-1/4" x 16-1/8" x 31-7/8"
Weight: 122.1 lbs
Electrical: 208/230V, 25 A
Max Line Set Length: 164 ft
Max Height Difference: 82 ft
