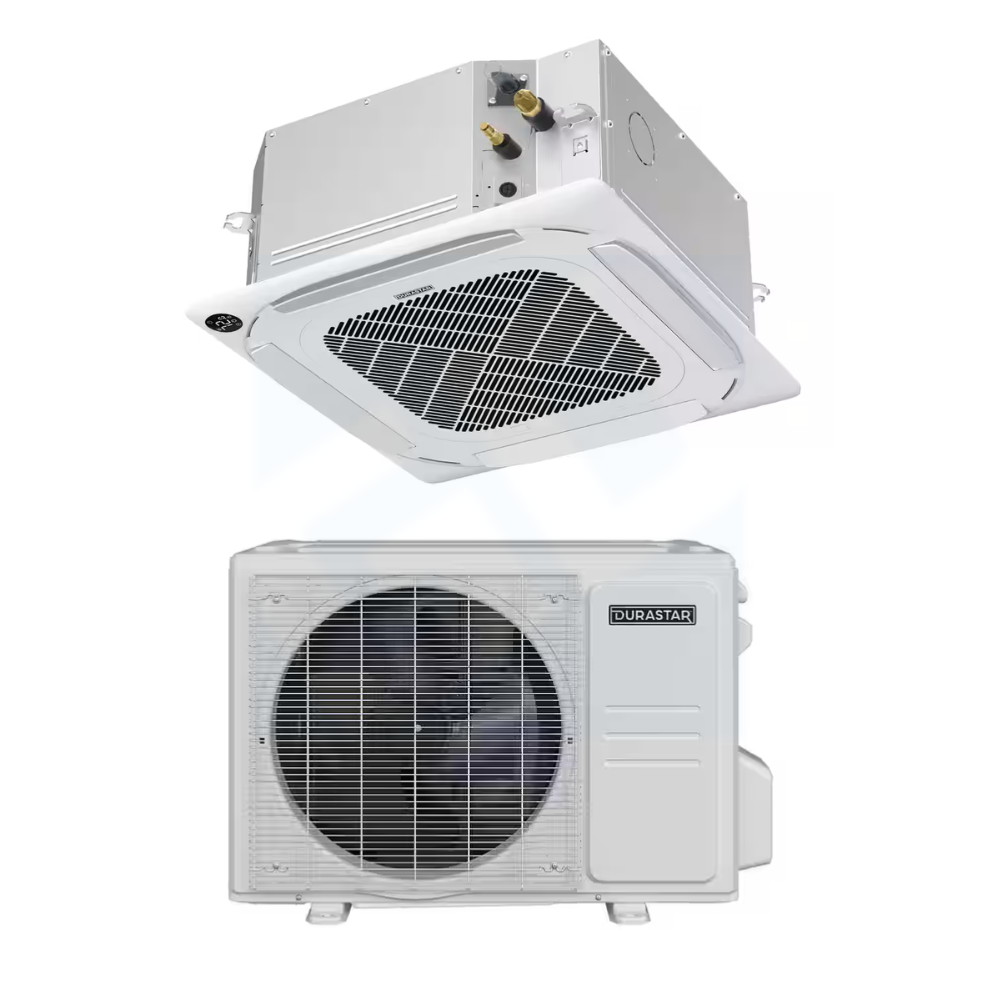

Durastar DRAC0912F2A & DRA1U12S2A is a 12,000 BTU four-way ceiling cassette mini-split heat pump system. It offers efficient heating/cooling down to –13°F, inverter tech, quiet operation, ENERGY STAR® efficiency, and smart modes—ideal for rooms with limited wall space.

Unit Type: Single Zone
Product Line: Durastar Mini-Splits
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 12,000 BTU
Line Set Size: 1/4" x 3/8"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit DRAC0912F2A
Outdoor Unit DRA1U12S2A
Ceiling Cassette Grille DRACPANA2A
Remote Control Included

Cooling Capacity up to 14,000 BTU
Heating Capacity up to 15,000 BTU
SEER2 21.1
EER2 12.5
HSPF2 10.4
Heating Operating Temp -22 - 75 F
Cooling Operating Temp -22 - 122 F
Room Cooling/Heating Capacity up to 500 sq ft

PRODUCT FEATURES
• Low ambient heating down to -13oF
• Low ambient cooling down to -13oF
• A2L refrigerant detection system
• Variable speed inverter compressor
• Quiet operation
• Wireless remote control with "Follow Me" technology
• Turbo, ECO, Active Clean, Sleep modes and more
• Humidity control
• Auto restart
• 46oF freeze protection
• Included base pan heater
• Anti-corrosive fin coating
• Compatible with DRSTAT101 wired thermostat

Airflow CFM: 147-194-306-365-417
Noise Level dB(A): 24-27-39-42-46
Size W x D x H: 22-7/16" x 22-7/16" x 9-5/8"
Weight: 35.3 lbs

Noise Level: 55 dB(A)
Size W x D x H: 30-1/8" x 11-15/16" x 21-7/8"
Weight: 62.2 lbs
Electrical: 208/230V, 15 A
Max Line Set Length: 82 ft
Max Height Difference: 49 ft
