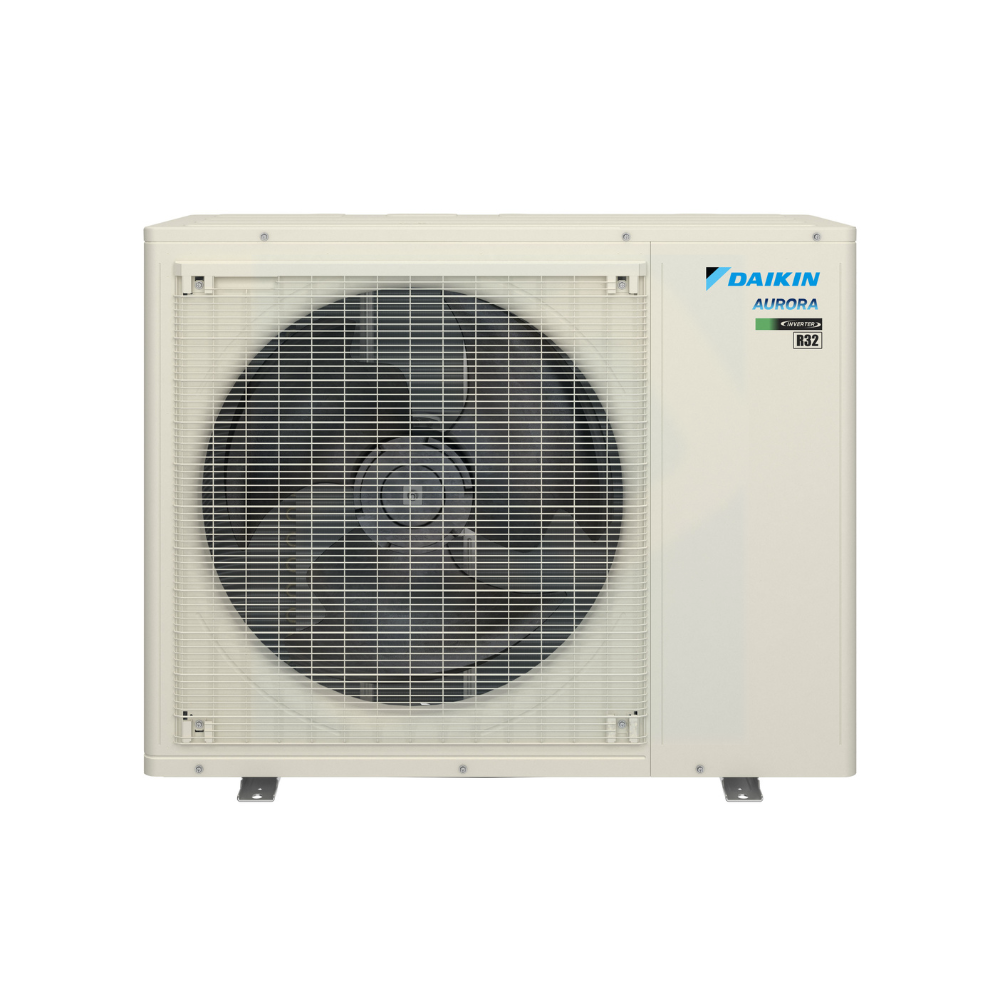

Daikin 5MXM48AVJU9 is a 4-ton, 5-port R-32 multi-zone heat pump delivering 46,000 BTU cooling and 48,500 BTU heating. With SEER2 20.0, HSPF2 9.5, quiet inverter operation, and eco-friendly R-32, it ensures efficient, flexible, and reliable comfort year-round for up to five zones.

Unit Type: Outdoor Unit
Product Line: MXM Series
Operating Mode: Cooling & Heating
Low Ambient Heat: No
Number of Zones: Multi
System Capacity: 48,000 BTU
Line Set Size: 1/4" x 3/8"

Outdoor Unit 5MXM48AVJU9

Cooling Capacity up to 46,000 BTU
Heating Capacity up to 48,500 BTU
SEER2 20.0
EER2 10.0
HSPF2 9.5
Heating Operating Range 5 - 75 F
Cooling Operating Range 14 - 115 F
Room Cooling/Heating Capacity up to 2,000 sq ft

FEATURES
Connect 2 to 5 indoor units with a single outdoor unit
High-efficiency inverter driven swing compressor
Cooling Operating Limit (14°~114.8°F/-10°~46°C)
Heating Operating Limit (5°~59.9°F/-15°~15.5°C)
Anti-corrosion treatment of outdoor heat exchanger
Specialized drain pan design for improved cold climate drainage
Pre Charged to 131.6ft (40 m)
Night Quiet Mode
Automatic Defrost
Quick Warming Function
Automatic Defrosting
Priority Room Setting
Cool/Heat mode lock
Unit performs self diagnosis and indicates results using LED lights
Wiring error check function
PAM Control
BENEFITS
Single Fan allows for multiple installation locations
12 year residential limited parts and compressor warranty with
online registration
5 Year limited parts warranty for commercial applications
Long piping lengths, up to 260 ft
High efficiency cooling and heating operation provides utility bill
savings
Multiple indoor unit style options available

Noise Level Cooling: 55 dB(A)
Noise Level Heating: 57 dB(A)
Airflow Cooling CFM: 3,137
Airflow Heating CFM: 3,137
Size W x D x H: 34-1/4" x 43-5/16" x 18-1/18"
Weight: 219 lbs
Electrical: 208/230V, 40 A
Max Line Set Length: 262 ft
Max Height Difference: 49 ft
