Daikin 3MXM24AVJU9 delivers 23,000 BTU cooling and 24,000 BTU heating with R-32 efficiency. Inverter-driven, quiet at 52 dB(A), and ideal for multi-zone comfort with up to 230 ft piping. Reliable, eco-friendly, and backed by a 12-year warranty for lasting performance.

Unit Type: Outdoor Unit
Product Line: MXM Series
Operating Mode: Cooling & Heating
Low Ambient Heat: No
Number of Zones: Multi
System Capacity: 24,000 BTU
Line Set Size: 1/4" x 3/8"

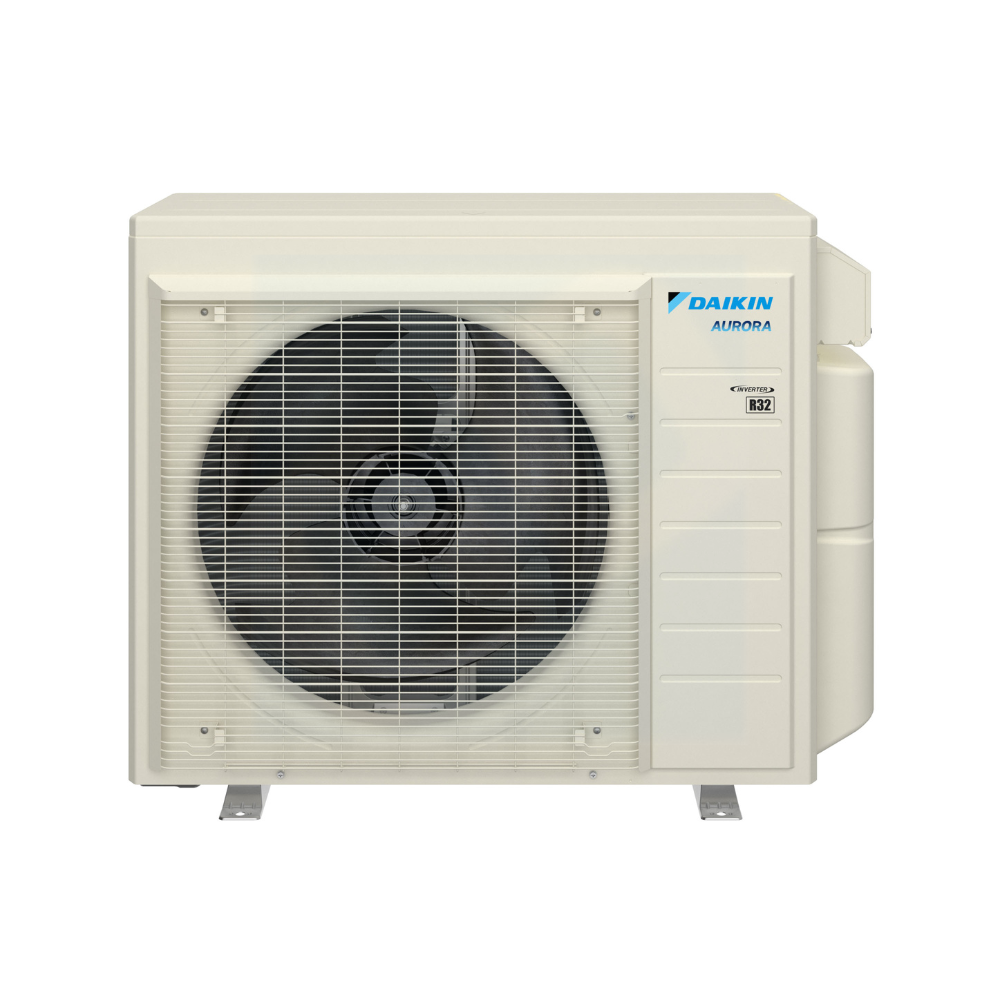

Outdoor Unit 3MXM24AVJU9

Cooling Capacity up to 23,000 BTU
Heating Capacity up to 24,000 BTU
SEER2 21.0
EER2 12.0
HSPF2 10.0
Heating Operating Range 5 - 60 F
Cooling Operating Range 14 - 115 F
Room Cooling/Heating Capacity up to 1,000 sq ft

FEATURES
High-efficiency inverter driven swing compressor
BENEFITS
12 Year limited parts warranty with online registration

Noise Level Cooling: 52 dB(A)
Noise Level Heating: 54 dB(A)
Airflow Cooling CFM: 1,939-2,055-2,462
Airflow Heating CFM: 1,070-2,140-2,140
Size W x D x H: 29-1/2" x 34-1/4" x 12-5/8"
Weight: 140 lbs
Electrical: 208/230V, 25 A
Max Line Set Length: 230 ft
Max Height Difference: 49 ft
