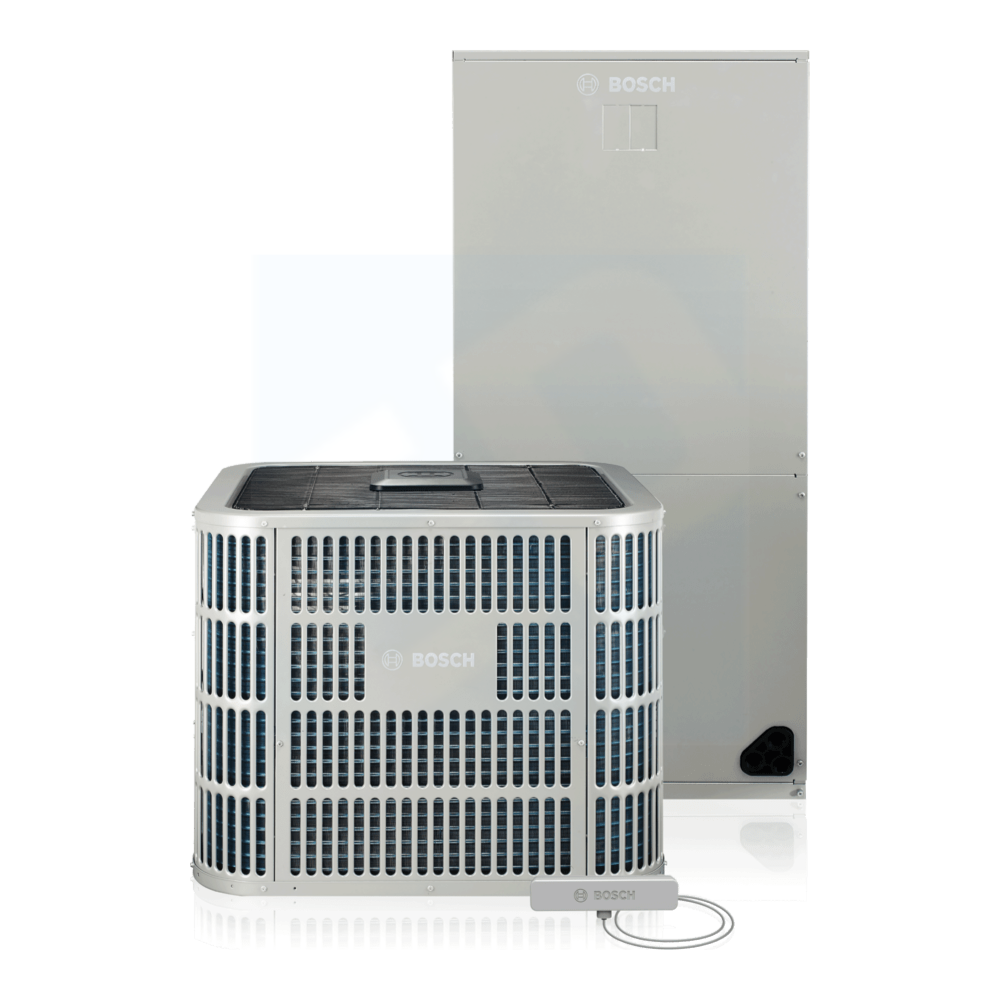

The Bosch BIVA-48RCB-M20X & BOVA-60RTB-M20S system delivers 60,000 BTU heating and cooling with inverter-driven efficiency, quiet operation, and multi-position flexibility. Built with R-454B refrigerant and Bosch’s trusted durability for large homes and light commercial spaces.

Unit Type: Single Zone
Product Line: Bosch IDS Premium
Operating Mode: Cooling & Heating
Low Ambient Heat: No
Number of Zones: 1
System Capacity: 48,000 BTU
Line Set Size: 3/8" x 7/8"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit BIVA-48RCB-M20X
Outdoor Unit BOVA-60RTB-M20S

Cooling Capacity up to 46,000 BTU
Heating Capacity up to 47,000 BTU
SEER2 20
EER2 9.5
HSPF2 12
Heating Minimum Temp 5 F
Cooling Minimum Temp 40 F
Room Cooling/Heating Capacity up to 2,000 sq ft

Indoor Unit Features and Benefits
• Premium efficiency – Up to 20 SEER2, up to 9.5 HSPF2
• The unit can be configured to communicate with R454b IDS Light & Plus
and IDS Premium Connected condensing unit
• All aluminum evaporator coil for superior corrosion resistance
• Constant torque multi-speed ECM blower motor - designed for two stage
operation
• 5, 8, 10, 15, 20 kW electric heat accessory kits available for
supplemental or emergency heating needs
• Easy to install – compatible with most standard 24 VAC heat pump
thermostats
• Factory-installed TXV metering
• Multi-position Installation - upflow or horizontal right standard; field
convertible to horizontal left or downflow
• Multiple electrical entry locations
• Dual front panel design for ease of maintenance
• Blower and coil easy slide out for ease of maintenance
• Fully-insulated cabinet design
• Horizontal and vertical condensate drain pans standard
• Condensate drain pan is polymer with UVC inhibitor
• Primary and secondary condensate drain fittings
• Factory-sealed cabinet certified to achieve 2% or less air leakage rate at
1.0 inch water column
• Integrated filter rack with tool-less door access
• AHRI and ETL Listed
Outdoor Unit Features and Benefits
• Premium efficiency – Up to 20 SEER2
• Product designed to use R454B refrigerant
• Optional communication between Bosch BOVA20 and BIVA20 Air Handler
unit
• Outdoor coil – copper tube with hydrophilic aluminum fins
• 10 speed ECM outdoor motor for quiet and efficient operation
• Inverter Drive Compressor (35%-138% speed in cooling, 34%-130%
speed in heating), modulation in 1% increments
• Whisper Quiet operation
• Small footprint – 29-1/8" (W) x 29-1/8" (D)
• Easy to install – compatible with most standard 24 VAC heat pump
thermostats
• Intelligent Oil Return Technology
• Inverter Driven Rotary Compressor
• Crankcase Heater Standard
• Compressor Sound Blanket
• Multiple System Protection:
◦ High pressure switch and low pressure transducer
◦ Compressor liquid return protection
◦ Compressor high or low compression ratio protection
◦ Compressor high temperature protection
◦ High / low voltage protection and over current protection
◦ IPM and electronic control board high temperature protection
• Outdoor coil is capable of withstanding 1000 hour salt spray test
according to ASTM B117 standard
• AHRI certified; ETL listed

Airflow CFM: 1,310-1,870
Noise Level dB(A): 62.7-68.6-72.4
Size W x D x H: 22" x 24" x 54-1/2"
Weight: 165 lbs

Noise Level: 58-74 dB(A)
Size W x D x H: 37-3/8" x 16-13/16" x 52-15/16"
Weight: 273 lbs
Electrical: 208/230V, 60 A
Max Line Set Length: 150 ft
Max Height Difference: 100 ft
