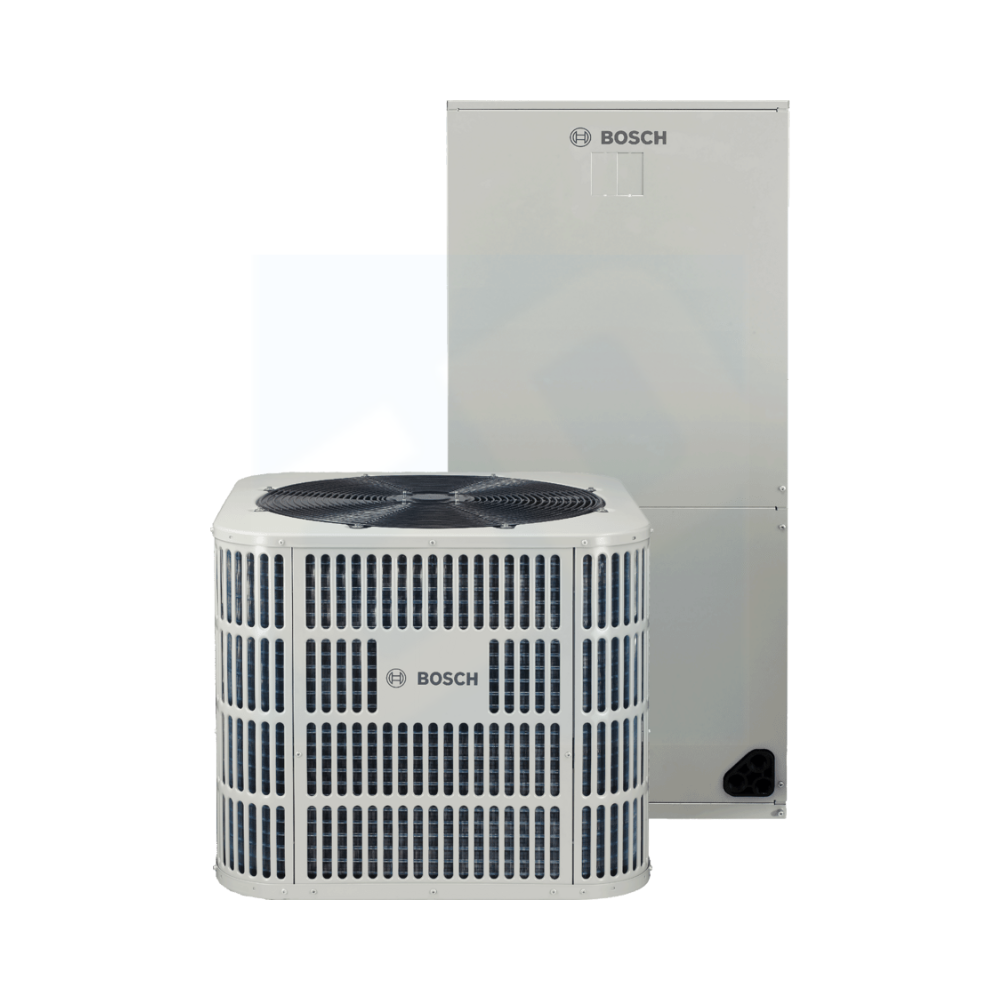

The Bosch BIVA-24RXB-M15X & BOVA-24RXB-M15S 24,000 BTU ducted heat pump system delivers quiet, efficient comfort with inverter-driven technology, flexible multi-position installation, and durable, eco-friendly R-454B design backed by Bosch reliability.

Unit Type: Single Zone
Product Line: Bosch IDS Light Series
Operating Mode: Cooling & Heating
Low Ambient Heat: No
Number of Zones: 1
System Capacity: 24,000 BTU
Line Set Size: 3/8" x 3/4"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit BIVA-24RXB-M15X

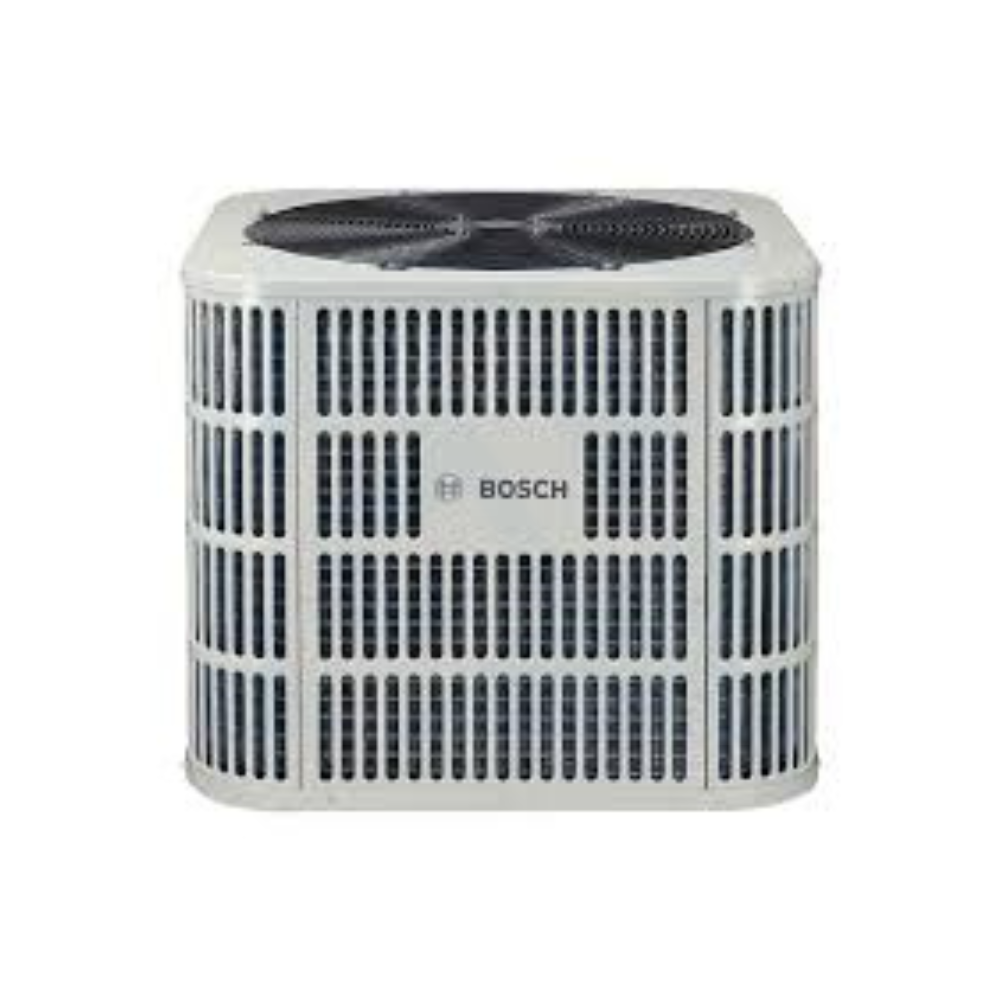

Outdoor Unit BOVA-24RXB-M15S

Cooling Capacity up to 24,000 BTU
Heating Capacity up to 24,000 BTU
SEER2 15
EER2 10.6
HSPF2 8.5
Heating Minimum Temp 3 F
Cooling Minimum Temp 40 F
Room Cooling/Heating Capacity up to 1,000 sq ft

Indoor Unit Features and Benefits
• Premium efficiency – Up to 15.2 SEER2, up to 8.5 HSPF2
• Factory installed A2L sensor
• All aluminum evaporator coil for superior corrosion resistance
• PSC Motor, 3 optional speeds
• 5, 7.5, 10, 15, 20 kW electric heat accessory kits available for
supplemental or emergency heating needs
• Easy to install – compatible with most standard 24 VAC heat pump
thermostats
• Factory-installed TXV metering
• Multi-position Installation - upflow or horizontal right standard; field
convertible to horizontal left or downflow
• Multiple electrical entry locations
• Dual front panel design for ease of maintenance
• Blower and coil easy slide out for ease of maintenance
• Fully-insulated cabinet design
• Horizontal and vertical condensate drain pans standard
• Condensate drain pan is polymer with UVC inhibitor
• Primary and secondary condensate drain fittings
• Factory-sealed cabinet certified to achieve 2% or less air leakage rate at
1.0 inch water column
• Integrated filter rack with tool-less door access
• AHRI and ETL Listed
Outdoor Unit Standard Features
• Designed to use R454B Refrigerant
• Inverter Compressor (33%-128% Speed), Modulation in 1% Increments
• Intelligent Oil Return Technology
• Inverter Driven Rotary Compressor
• Crankcase Heater Standard
• Compressor Sound Blanket
• Multiple System Protection:
◦ High pressure switch and low pressure transducer
◦ Compressor liquid return protection
◦ Compressor high or low compression ratio protection
◦ Compressor high temperature protection
◦ High / low voltage protection and over current protection
◦ IPM and electronic control board high temperature protection
• Outdoor coil is capable of withstanding 1000 hour salt spray test
according to ASTM B117 standard
• AHRI certified; ETL listed

Airflow CFM: 760-972-1,134
Noise Level dB(A): 63.5
Size W x D x H: 19-5/8" x 21-5/8" x 46-1/2"
Weight: 127 lbs

Noise Level: 59-74.9 dB(A)
Size W x D x H: 28" x 28" x 24-15/16"
Weight: 122 lbs
Electrical: 208/230V, 35 A
Max Line Set Length: 100 ft
Max Height Difference: 50 ft
